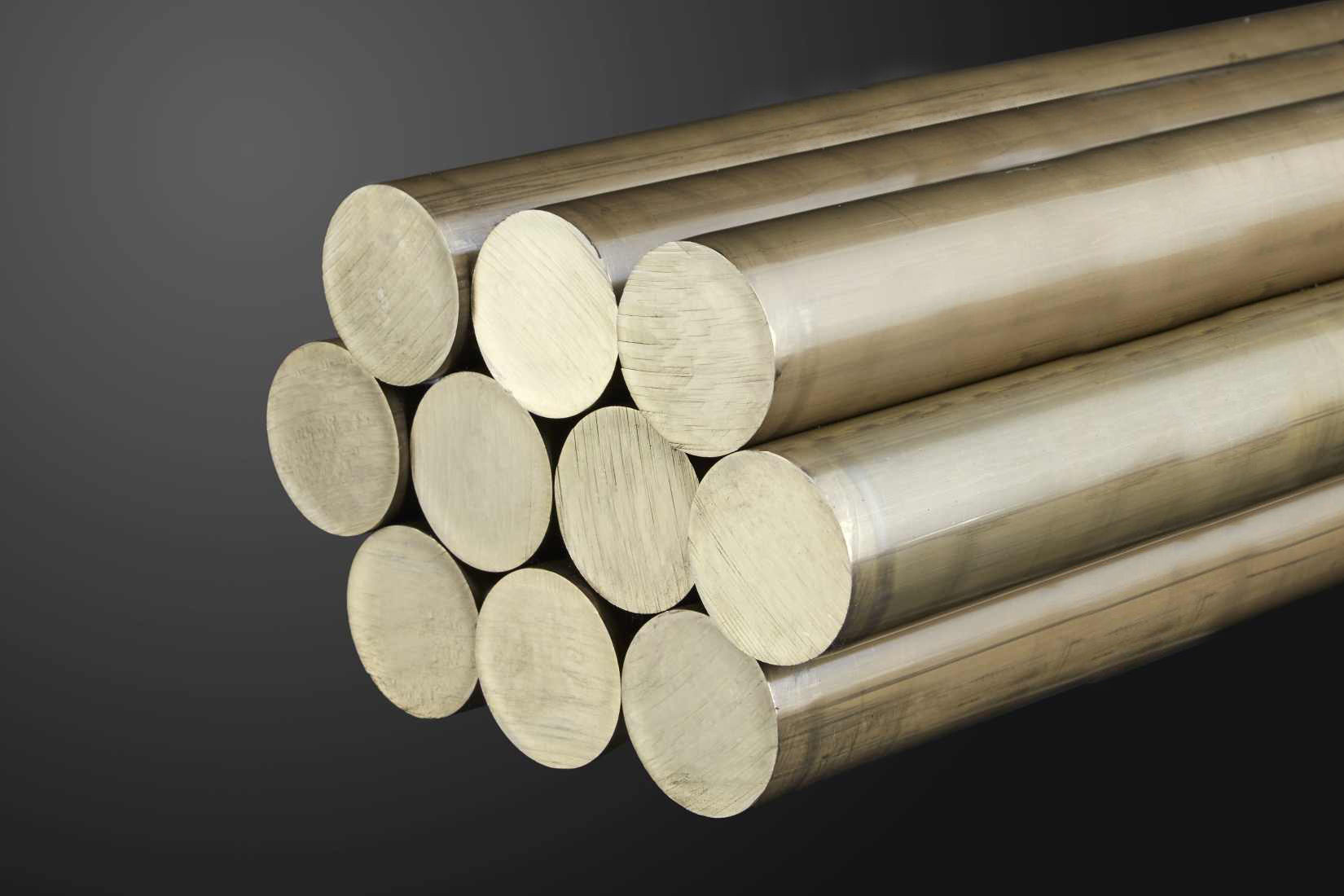

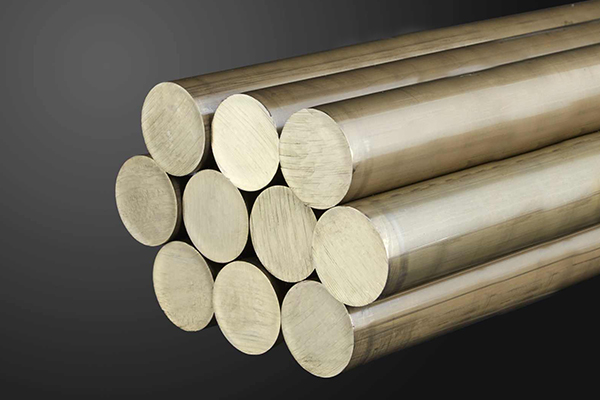

Extruded Rods
Extruded rods are products that manufactured according to EN 12165 European Standard for hot forging processes
- Alloys
- Production Ranges
- Tolerances
- Ordering Information
-
- Download
- Product Code
- EN Symbol
- EN No
- ASTM
- (*) please contact us for other alloys.
-
Designation Cold Drawn Extruded Cold Drawn Polygons Extruded Polygons Standards Diameter (mm) Width Across-flats (mm) Product Code EN Symbol EN No ASTM Min Max Max Min Max Max S614 CuZn39Pb3 CW614N C38500 6 80 140 6 55 100 S617 CuZn40Pb2 CW617N C38000 6 80 140 6 55 100 S602 CuZn36Pb2As CW602N C35330 10 80 140 10 55 100 S608 CuZn38Pb2 CW608N - 6 80 140 6 55 100 S612 CuZn39Pb2 CW612N C37700 8 80 140 8 55 100 S603 CuZn36Pb3 CW603N C36000 10 80 140 10 55 100 Ecobrass CuZn21Si3P CW724R C69300 10 80 90 10 55 90 S509 CuZn40 CuZn40 C27450 6 80 140 6 55 100 S510 CuZn42 CW510L C28500 6 80 140 6 55 100 S511 CuZn38As CW511L C27453 10 80 140 10 55 100 S625 CuZn35Pb1,5AlAs CW625N - 10 80 140 10 55 100 S626 CuZn33Pb1,5AlAs CW626N - 10 80 140 10 55 100 S709 CuZn32Pb2AsFeSi CW709R - 8 80 140 8 55 100 S713 CuZn37Mn3Al2PbSi CW713R C67420 8 80 140 8 55 100
-
Ordering information for extruded rods is defined according to EN 12165 European Standart. This definition is as follows:
- Naming
- Forging stock
- Standard
- EN 12165
- Material Designation
-
Alloy Symbol or Number,
E.g. CuZn40Pb2 or CW617N
- Materials to be used in Drinking Water
- When specified as DW, production is carried out according to the restrictions on 4MS and UBA list
- Material Condition Designation
- The necessary mechanical properties if different than M,
E.g. Min hardness H080 for 80HBW
- Cross-sectional Shape
- E.g. RND for round, SQR for square, HEX for hexagonal, OCT for octagonal, RCT for rectangular (bar), PFL for profile
- Nominal Cross-sectional Dimension
- E.g. 30 for 30 mm
- Tolerances
- E.g. A or B
- For Profiles
- Technical drawing with tolerance
Forging stock conforming to this standart, in material designated either CuZn40Pb2 or CW617N, for drinking water applications according to 4MS Common Composition List, in material condition H080, round, nomial diameter 15 mm, tolarance Class A, shall be designated as follows:
The product designation provides a standardized pattern of designation of the main order information when combined with quantity, length / piece and weight tolerances. Additional order information may include; the test method, the type of packaging information and quality assurance certification.
-
Standard EN 12165 Nominal Diameter Tolerances Over Up to and including Class A Class B 5 6 - - 6 10 ±0,25 ±0,14 10 13 ±0,25 ±0,14 13 18 ±0,25 ±0,14 18 20 ±0,30 ±0,17 20 23 ±0,30 ±0,17 23 26 ±0,30 ±0,17 26 30 ±0,30 ±0,17 30 50 ±0,60 ±0,20 50 55 ±0,70 ±0,37 55 65 ±0,70 ±0,37 65 80 ±0,70 ±0,37 80 120 ±2 - 120 140 ±2,5 - *Measurements are in (mm).
