Cold Drawn Coils

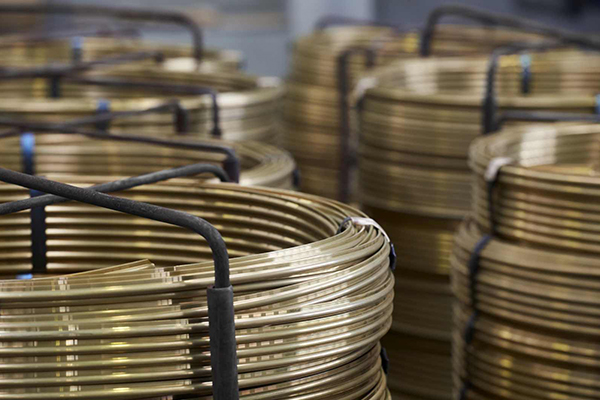

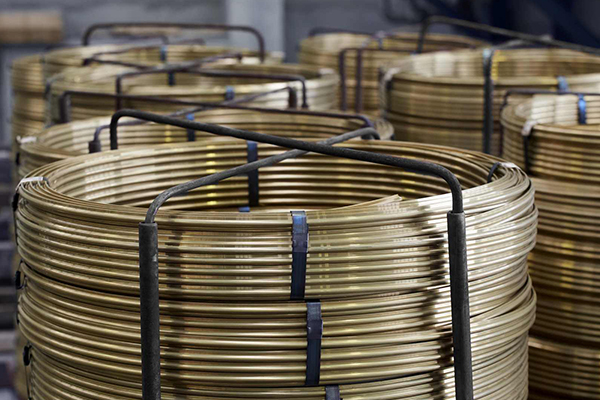

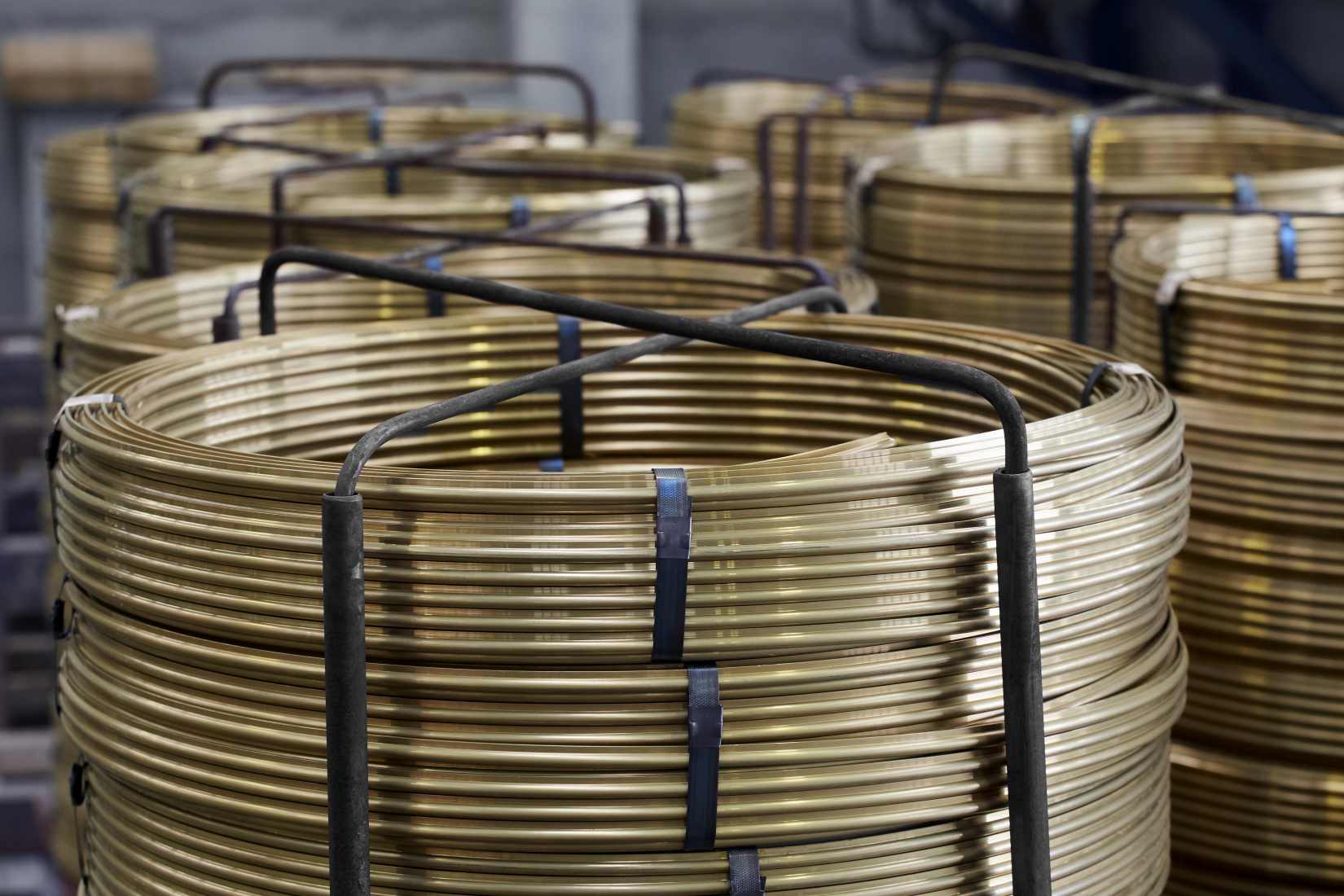

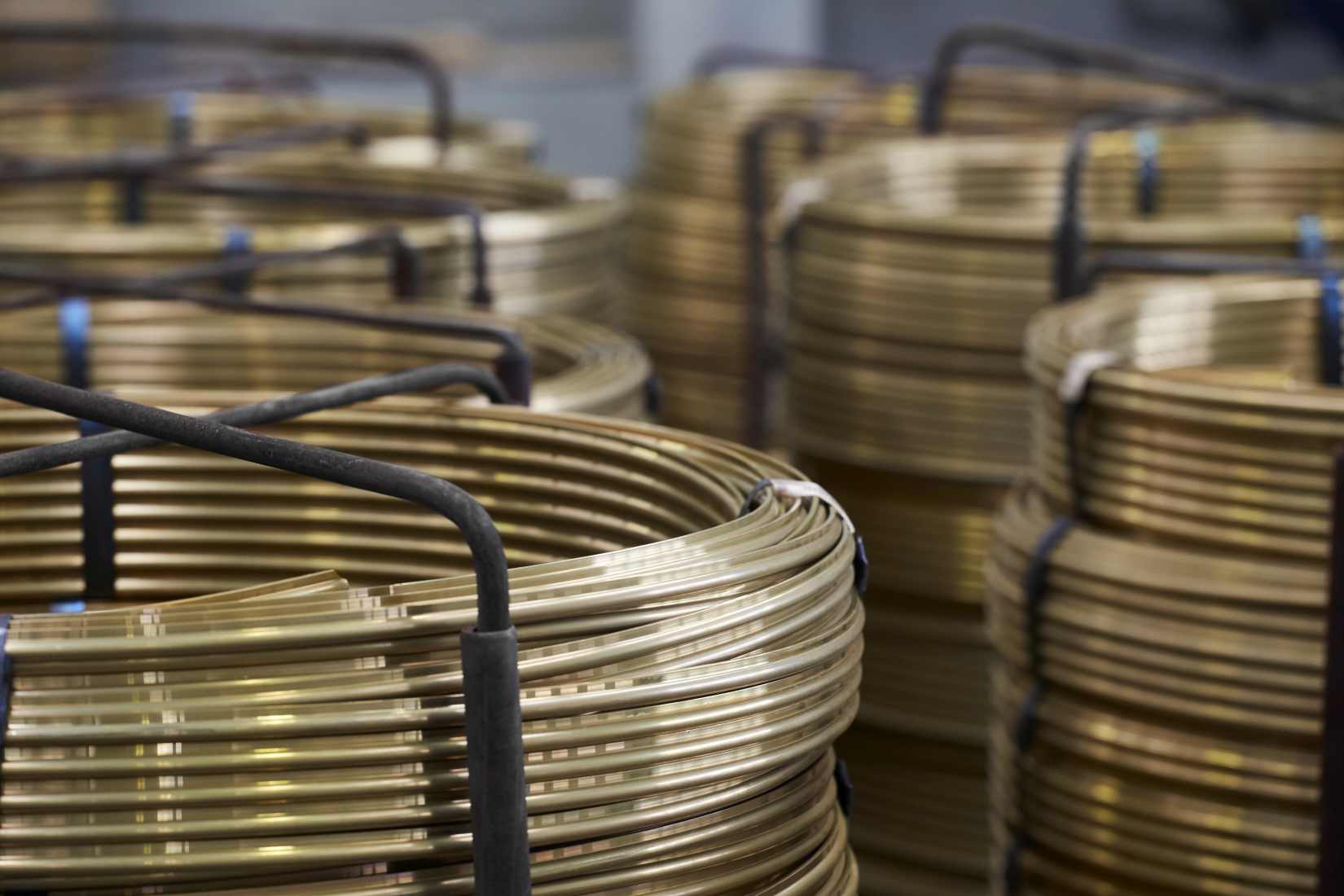

Cold drawn coils are produced according to EN 12166 European Standard. They are coil shaped high precision products suitable for efficient chip removal in free machining process.
They increase production speed and productivity by reducing the loading times of machines
- Alloys
- Production Ranges
- Tolerances
- Ordering Information
-
- Download
- Product Code
- EN Symbol
- EN No
- ASTM
- (*) please contact us for other alloys.
-
Type Production Range Round 5-14 (mm) Hexagon, Square 5-12 (mm) Rectangle Thickness : 5-10 (mm)
Width : 5-20 (mm)
-
Ordering information for cold drawn coils defined according to EN 12166 European Standart. This definition is as follows:
- Naming
- Wire or Coil
- Standard
- EN 12166
- Material Designation
-
Alloy Symbol or Number,
E.g. CuZn40Pb2 or CW617N
- Materials to be used in Drinking Water
- Materials to be used in Drinking Water
- Material Condition Designation
-
The necessary mechanical properties if different than M,
E.g. Hardness value min. H115 for 115 HBW
- Cross-sectional Shape
- E.g. RND for round, SQR for square, HEX for hexagonal, OCT for octagonal, RCT for rectangular (bar), PFL for profile
- Nominal Cross-sectional Dimension
- E.g. For width x thickness (6.0 x 5.0)
- Tolerances
- Class A,B,C,D or E
- Corner Type
- When necessary, E.g. SH - Sharp or RD - Rounded

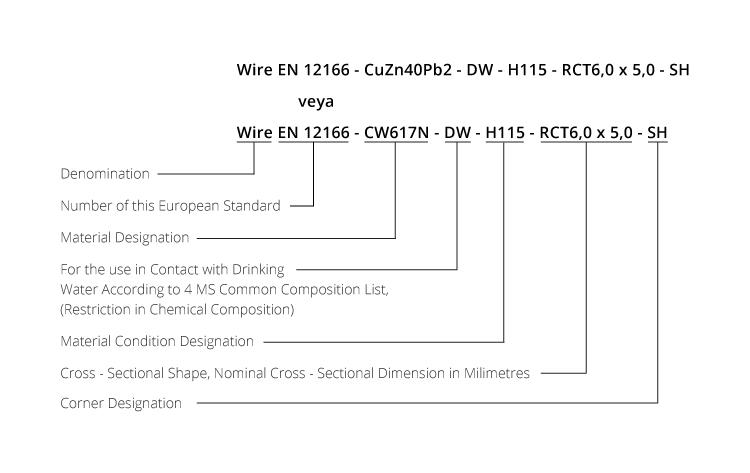

Material description CuZn40Pb2 or CW617N, material status H115, rectangular section, nominal measures of 6,0 mm x 5,0 mm class B tolerance, sharp corner; complying with the restrictions on the 4MS and UBA list for drinking water applications and with EN 12166 standard. Cold drawing coils with the properties above should be shown as follows.
The product designation provides a standardized pattern of designation of the main order information when combined with quantity, length / piece and weight tolerances. Additional order information may include; the test method, the type of packaging information and quality assurance certification.
-
EN 12166- Tolerances on Diameter of Round Coils Nominal Diameter Tolerances Over Up to and including Class A Class B Class C Class D Class E 6Inc. 6,0 ±0,04 0
- 0,120
- 0,080
- 0,050
- 0,0306,0 10,0 ±0,06 0
- 0,150
- 0,090
- 0,060
- 0,03610,0 14,0 ±0 08 0
- 0,180
- 0,110
- 0,070
- 0,043
EN 12166 - Tolerances on Width Across-flats of Square or Regular Polygonal Coils Nominal Width Across-flats Tolerances Over Up to and including Class A Class B Class C 5,0Inc. 6,0 ±0,06 0
- 0,120
- 0,086,0 10,0 ±0,08 0
- 0,150
- 0,0910,0 12,0 ±0,10 0
- 0,180
- 0,11
EN 12166- Tolerances on Width and Thickness of Rectangular Wire Coils Nominal Width Across-flats Tolerance on Width Thickness Tolerances in Thickness Range Over Up to and inc. over 5,0 up to and İncluding 6,0 over 6,0 up to and İncluding 10,0 over 10,0 up to and İncluding 12,0 5,0Inc. 6,0 ±0,06 ±0,06 - - 6,0 10,0 ±0,08 ±0,07 ±0,08 - 10,0 12,0 ±0,10 ±0,07 ±0,09 ±0,10 *Dimensions are in millimeters (mm)
