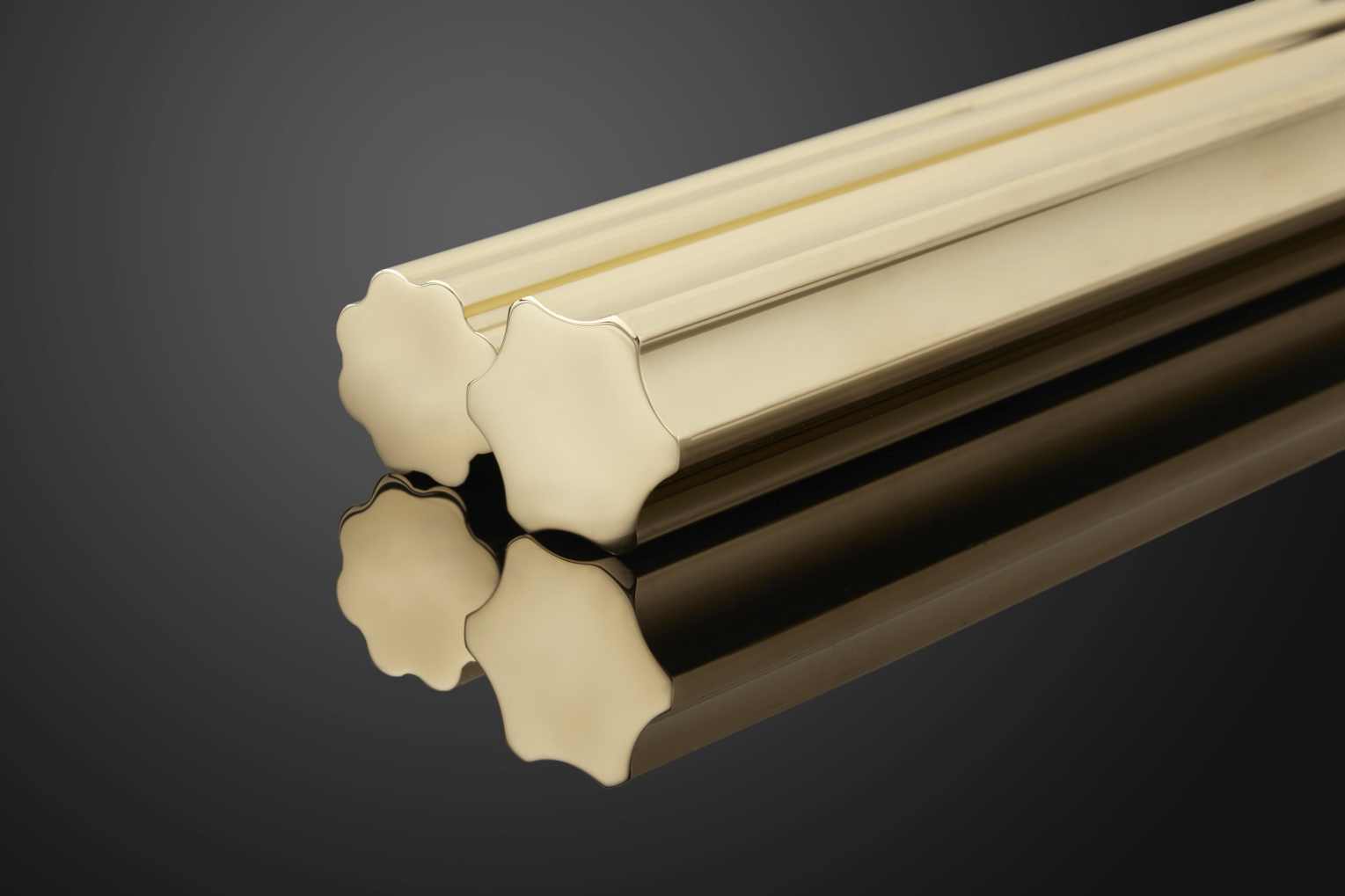

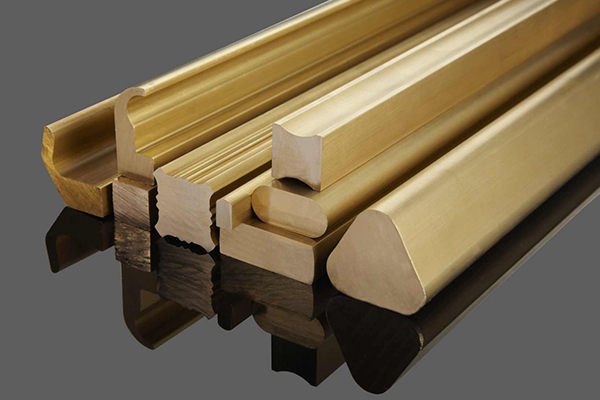

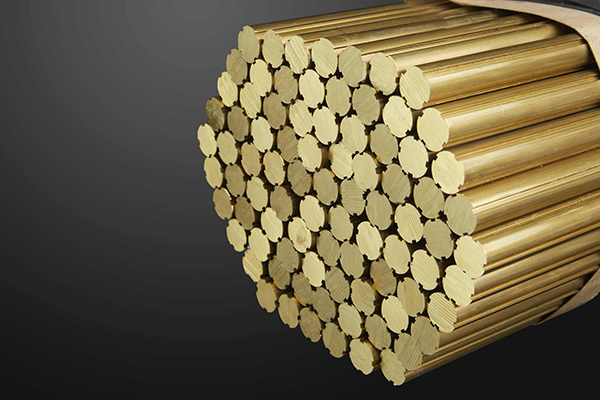

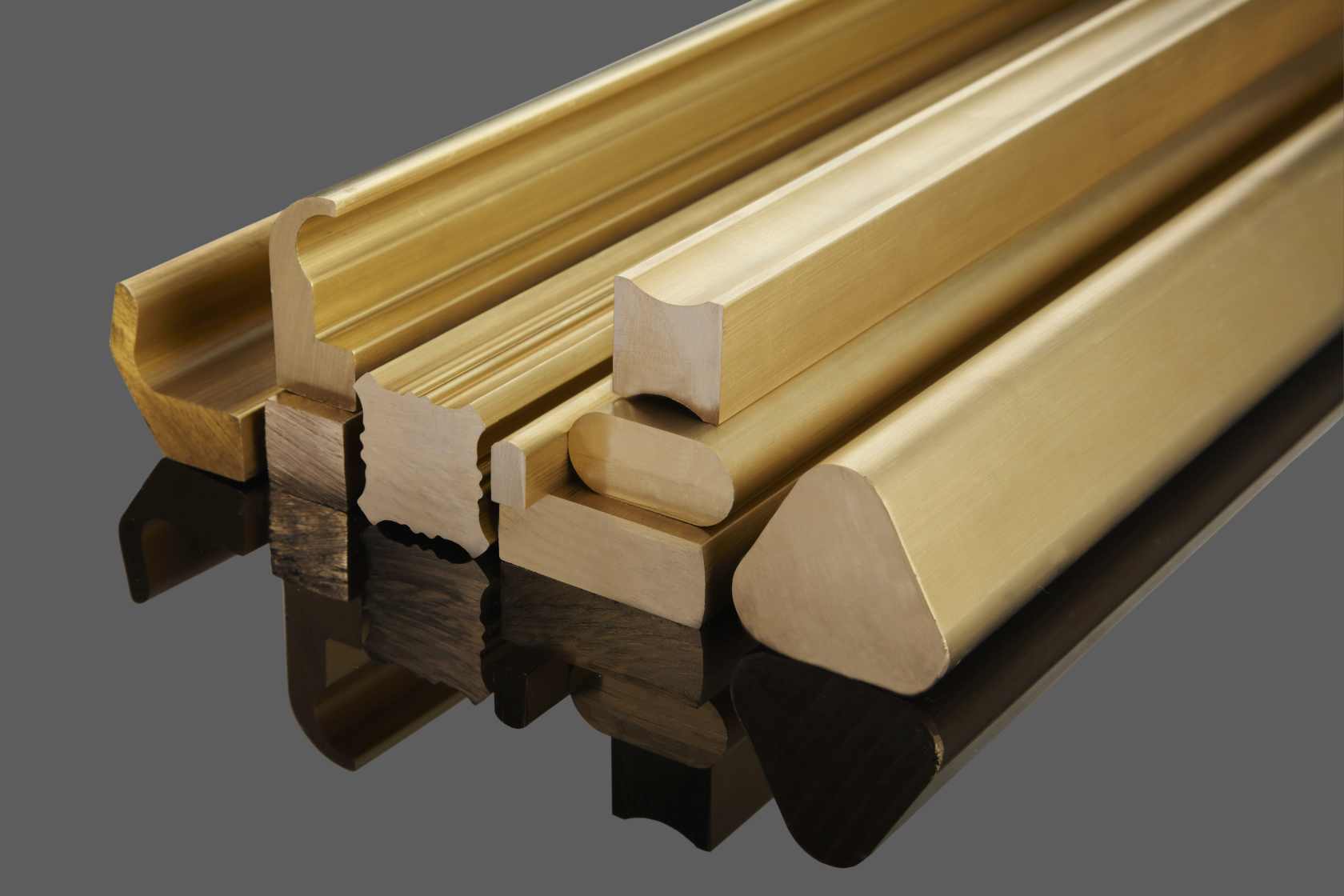

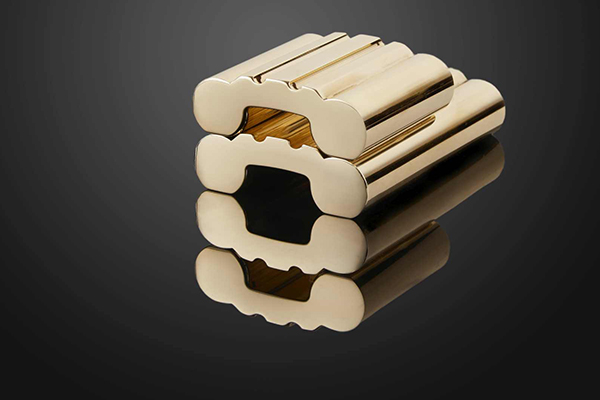

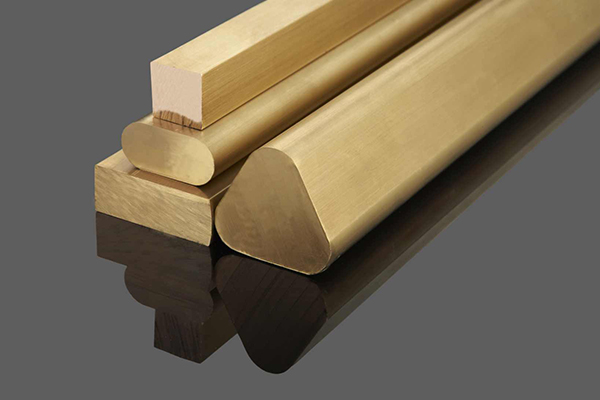

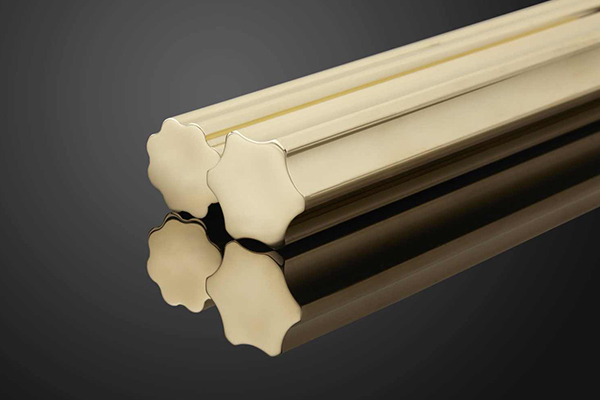

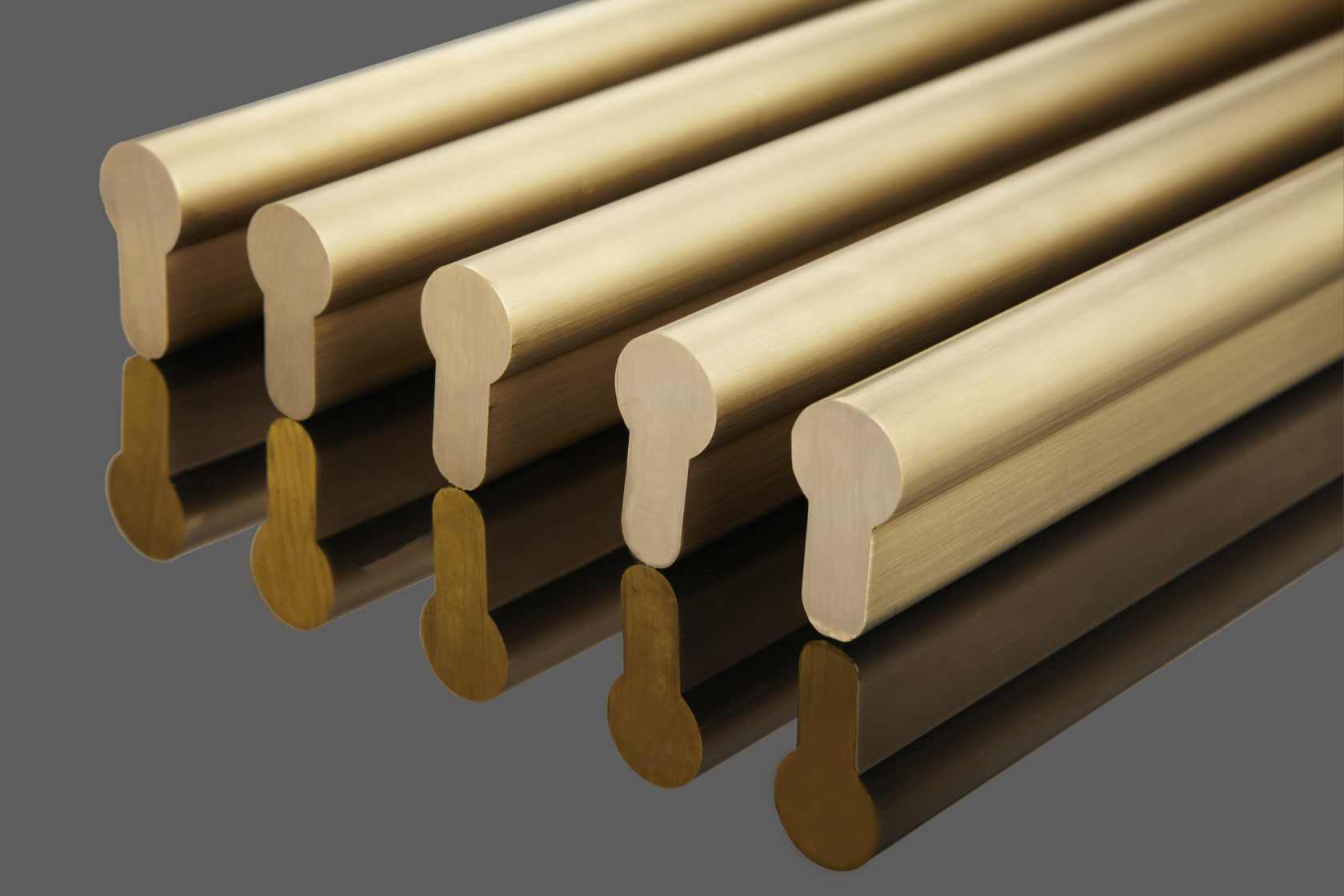

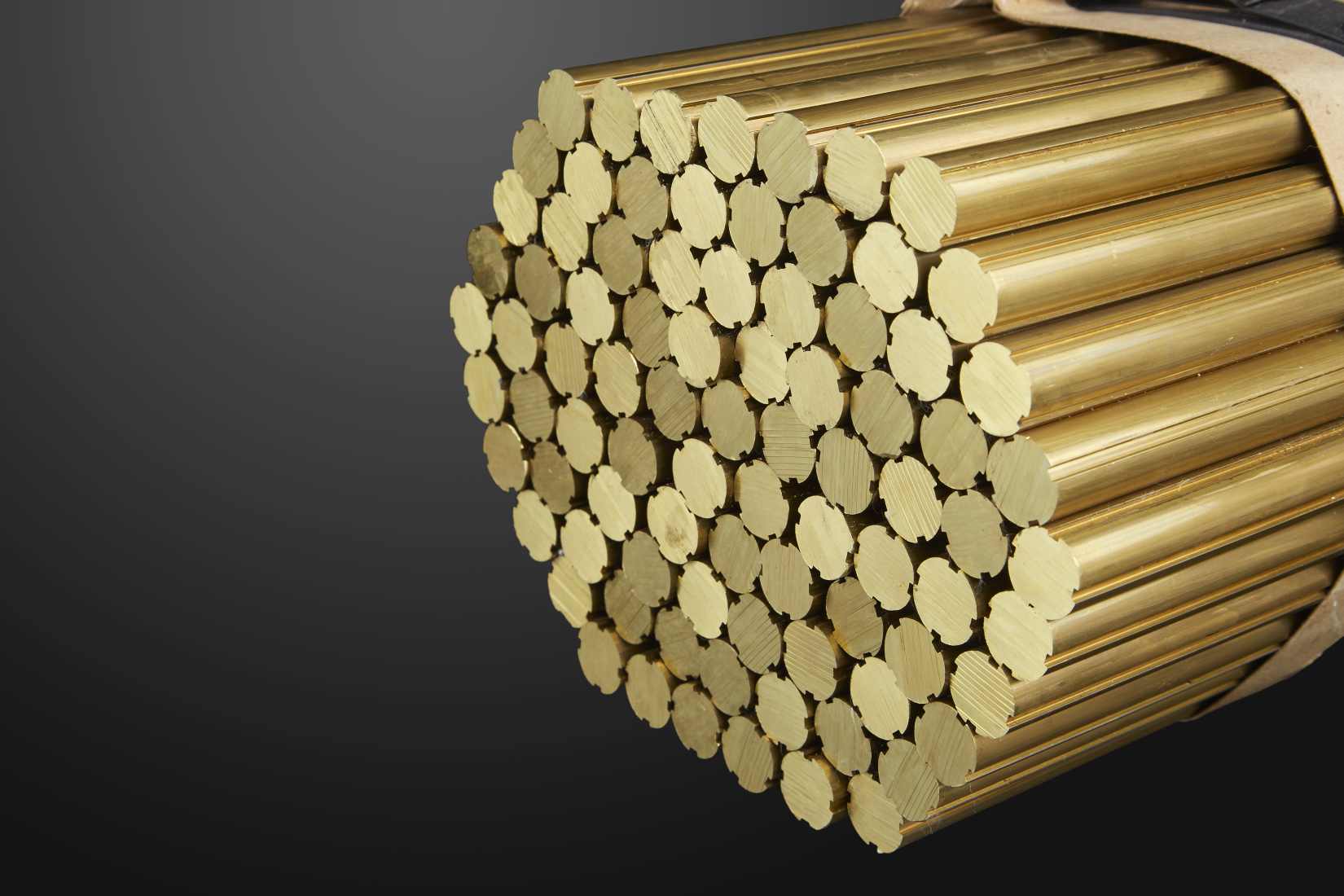

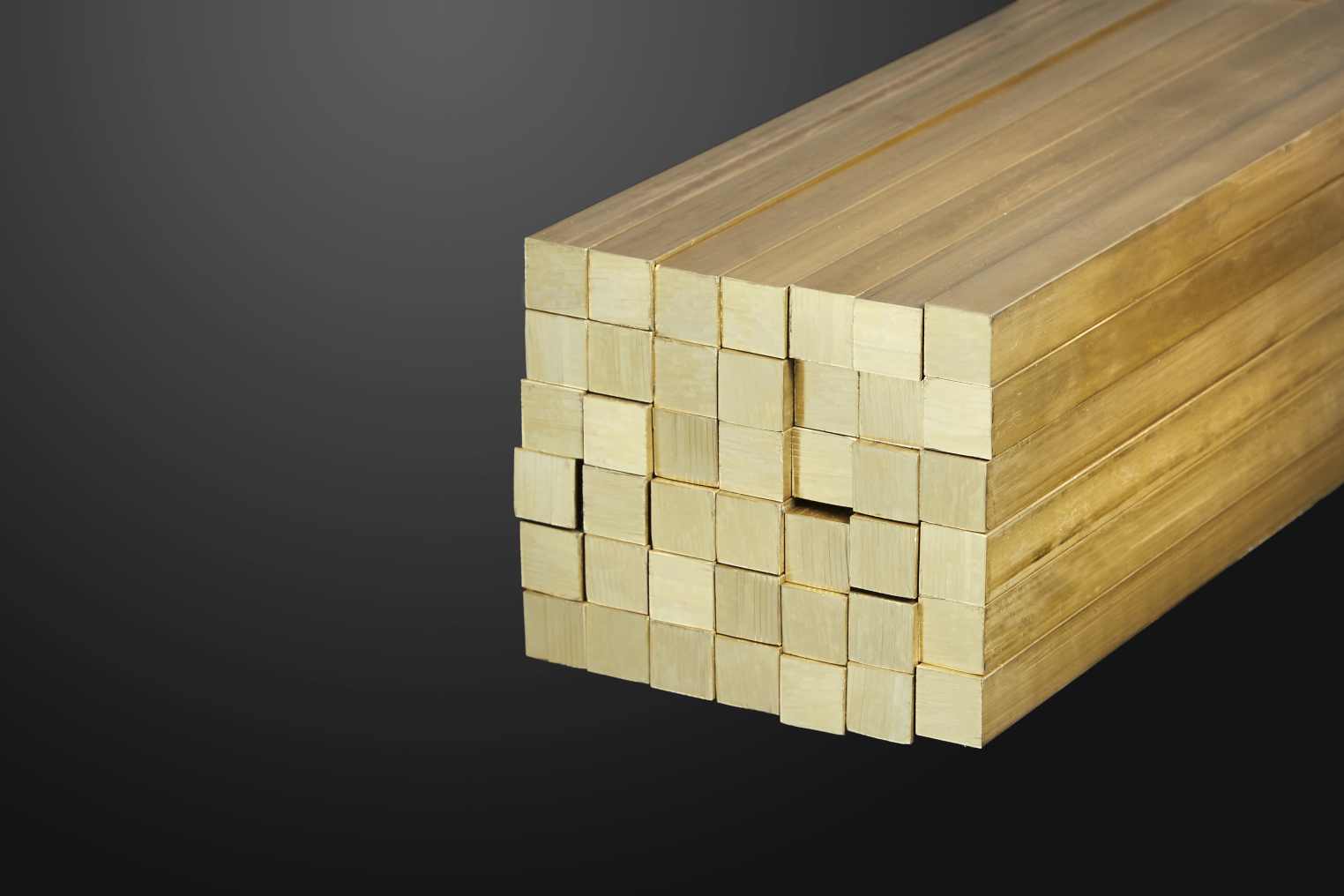

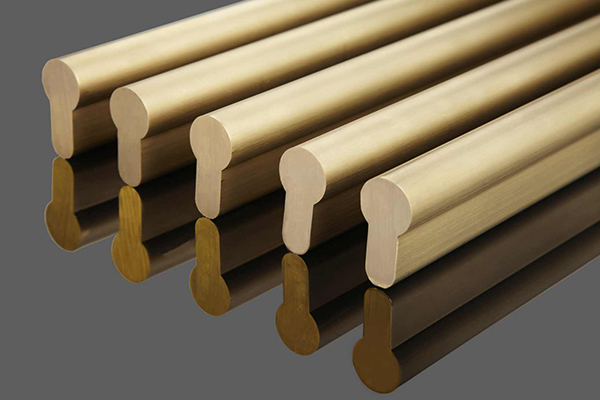

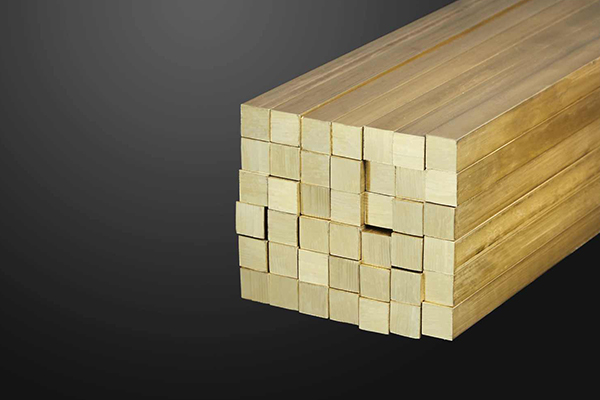

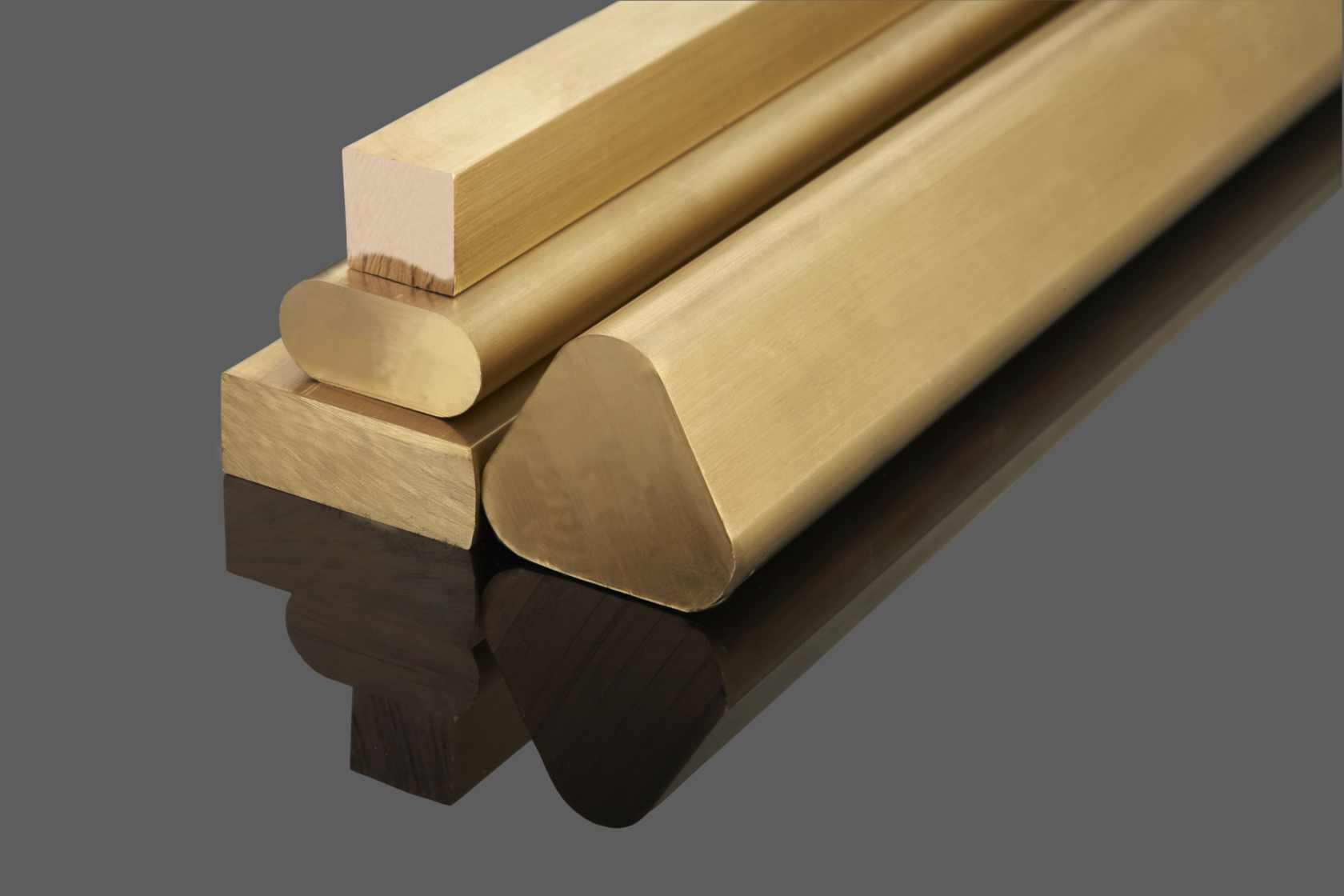

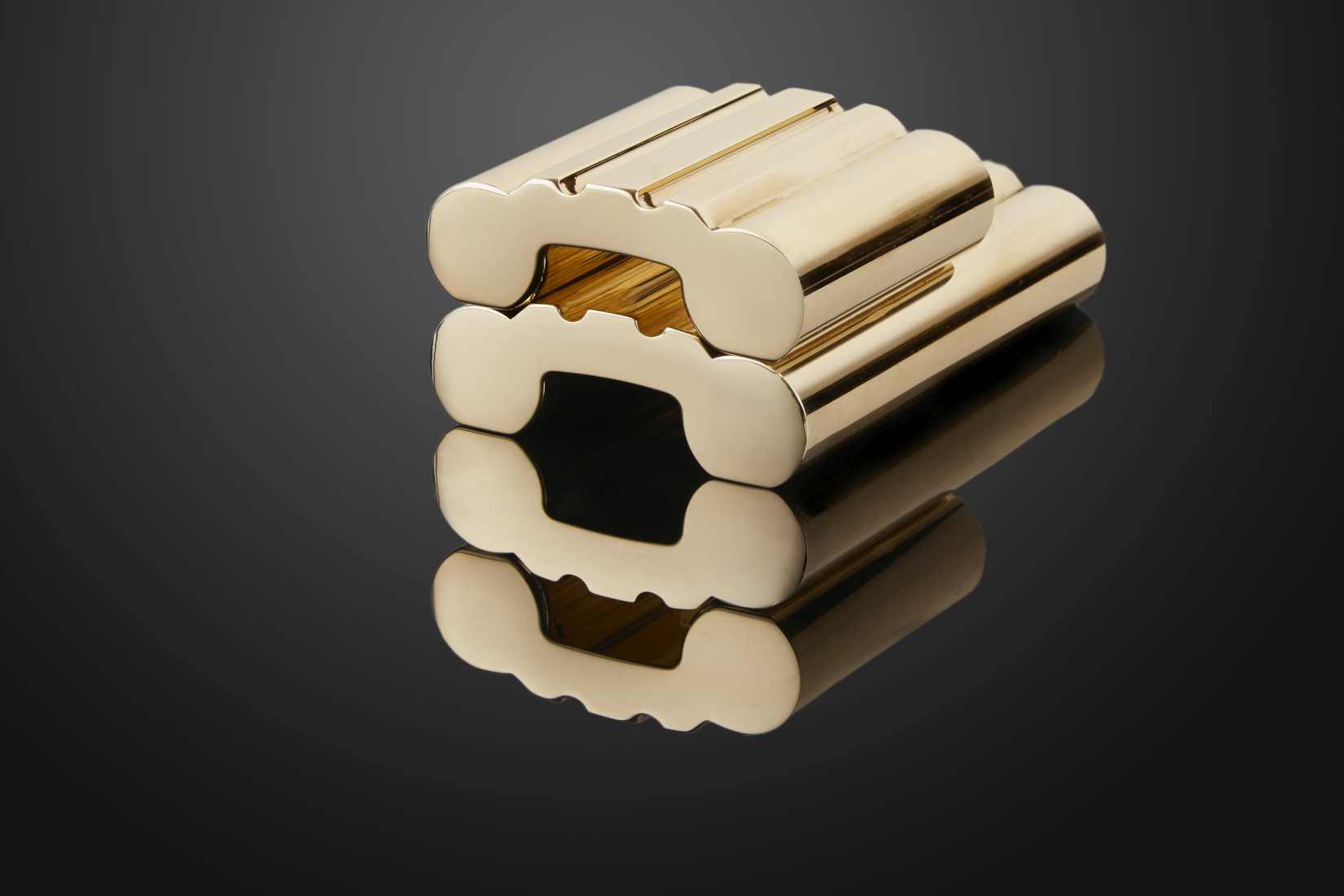

Profiles and Bars
Profiles and Bars are produced according to customer requirements in special sizes and forms with many years of production experience according to EN 12167 European standard.
Production for profiles and bars is divided into two parts as extruded or cold drawn according to the required dimensional tolerances and mechanical properties.
- Alloys
- Production Ranges
- Tolerances
- Ordering Information
-
- Download
- Product Code
- EN Symbol
- EN No
- ASTM
- (*) please contact us for other alloys.
-
Size (mm) Weight (kg/m) Size (mm) Weight (kg/m) Size (mm) Weight (kg/m) Size (mm) Weight (kg/m) 8 x 6 0,403 23 x 8 1,546 32 x 12 3,226 45 x 20 7,560 9 x 6,5 0,491 23 x 10 1,932 32 x 18 4,838 45 x 25 9,450 9,28 x 7,6 0,592 25 x 6 1,260 33 x 9 2,495 46 x 16 6,182 10 x 6 0,504 25 x 8 1,680 33,5 x 10 2,814 46 x 26 10,046 10 x 8 0,672 25 x 10 2,100 35 x 8 2,352 50 x 8 3,360 10,8 x 9,8 0,889 25 x 12 2,520 35 x 10 2,940 50 x 10 4,200 12 x 6,5 0,655 25 x 15 3,150 35 x 12 3,528 50 x 12 5,040 12 x 8 0,806 25 x 20 4,200 35R1 X 18R1 5,292 50 x 15 6,300 12 x 10 1,008 25,4 x 9,53 2,033 35 x 15 4,410 50 x 20 8,400 12,7 x 9,53 1,017 25,4 x 12,7 2,710 35 x 20 5,880 50 x 25 10,500 14 x 10 1,176 25,4 x 15,88 3,388 35 x 25 7,350 50 x 30 12,600 14 x 12,5
1,470
25,4 x 19,05 4,065 37 x 20 6,216 50 x 35 14,700 14,6 x 5,8 0,711 26 x 22 4,805 38 x 15,86 5,063 50 x 40 16,800 15 x 8 1,008 28 x 6 1,411 38,1 x 19,05 6,097 50,8 x 19,05 8,129 15 x 10 1,260 28,6 x 12,68
3,046 40 x 8 2,688 50,8 x 22,23 9,486 15 x 12 1,512 30 x 8 2,016 40 x 10 3,360 50,8 x 25,4 10,839 17 x 12 1,714 30 x 10 2,520 40 x 12 4,032
60 x 8 4,032 17,8 x 12,6 1,884 30 x 12 3,024 40 x 15 5,040 60 x 9 4,536 19 x 16 2,554 30 x 15 3,780 40 x 20 6,720 60 x 10 5,040 19,05 x 9,53 1,525 30 x 20 5,040 40 x 25 8,400 60 x 12 6,048 19,05 x 12,7 2,032 30 x 20,2 5,090 40 x 30 10,080 60 x 15 7,560 19,7 x 9,7 1,605 30 x 25 6,300 44,45 x 19,05 7,113 60 x 20 10,080 20 x 8 1,344 30 x 28 7,056 45 x 8 3,024 60 x 25 12,600 20 x 10 1,680 31,75 x 15,88 4,235 45 x 10 3,780 60 x 30 15,120 20 x 12 2,016 32 x 8 2,150 45 x 12 4,536 60 x 40 20,160 20 x 15 2,520 32 x 8,32 2,236 45 x 15 5,670 70 x 20 11,760
-
Ordering information for profiles and bars is defined according to EN 12167 European Standart. This definition is as follows:
- Naming
- Profiles or Bars
- Standard
- EN 12167
- Material Designation
- Alloy Symbol or Number, E.g. CuZn40Pb2 or CW617N
- Materials to be used in Drinking Water
- When specified as DW, production is carried out according to the restrictions on 4MS and UBA list
- Material Condition Designation
- he necessary mechanical properties if different than M, E.g. Hardness value min. H110 for 110 HBW
- Nominal Cross-sectional Dimension
- The number of sections for profiles or detailed technical drawing with tolerances. Cross sectional dimensions (thickness x width) for rectangular section bars
- Tolerances
- Class A,B or C
- Corner Type
- When necessary, E.g. SH - Sharp or RD - Rounded

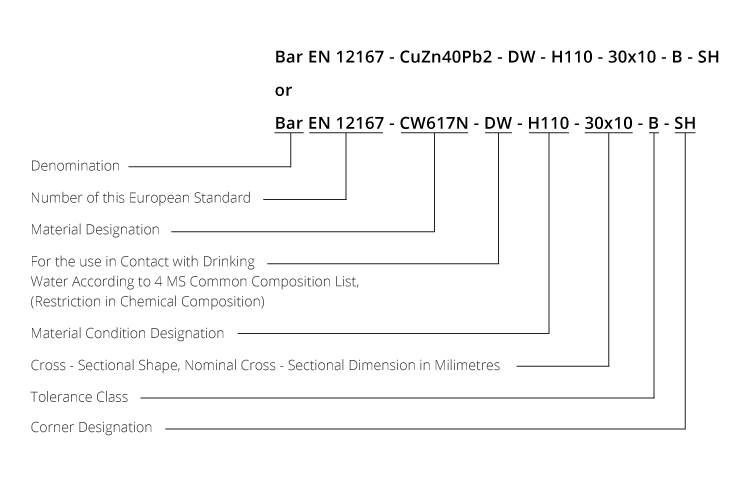

Bar conforming to this standard, in material designated either CuZn40Pb2 or CW617N for drinking water applications according to 4MS Common Composition List, in material condition H110, nomial cross-sectional dimensions 30 mm x 10 mm, tolarence Class B, with sharp corners, shall be designated as follows:
The product designation provides a standardized pattern of designation of the main order information when combined with quantity, length / piece and weight tolerances. Additional order information may include; the test method, the type of packaging information and quality assurance certification.
-
*Dimensions are in millimeters (mm)EN 12167 - Tolerances on Width and Thickness of Bar Nominal Width Tolerance on Width Tolerance on Thickness for Range of Thickness Over Up to and inc. Over 5 up to and including 6 Over 6 up to and including 10 Over 10 up to and including 18 Over 18 up to and including 30 Over 30 up to and including 50 6Inc. 18 ±0,10 ±0,07 ±0,09 ±0,10 - - 18 30 ±0,15 ±0,07 ±0,09 ±0,10 ±0,15 - 30 50 ±0,20 ±0,09 ±0,10 ±0,12 ±0,15 ±0,20 50 70 ±0,25 ±0,11 ±0,12 ±0,15
±0,20 ±0,25
